QUARTZ
Chemical Formula: SiO2
Familly: Oxides and hydroxides
Status: IMA-A
Crystal System: Rhomboedric
Mineral for Display: Yes
Associated names (luminescent varieties, discredited names, synonymes etc.):
agate, amethyst, chalcedony, herkimer diamond, Jasper, onyx,
Luminescence:
UV Type |
Main color |
Intensity |
Observation Frequency |
|
| | | |
Long Waves (365nm): | Yellow | | Rarely | Mid waves (320 nm): | Yellow | | Very rarely | Short Waves (254 nm): | Yellow | | Very rarely | | | | |
Other colors LW: | Bluish White , Orangy yellow , Greenish Yellow , |
Other colors MW: | Bluish White , Orangy yellow , Greenish Yellow , |
Other colors SW: | Bluish White , Orangy yellow , Red , Greenish Yellow , |

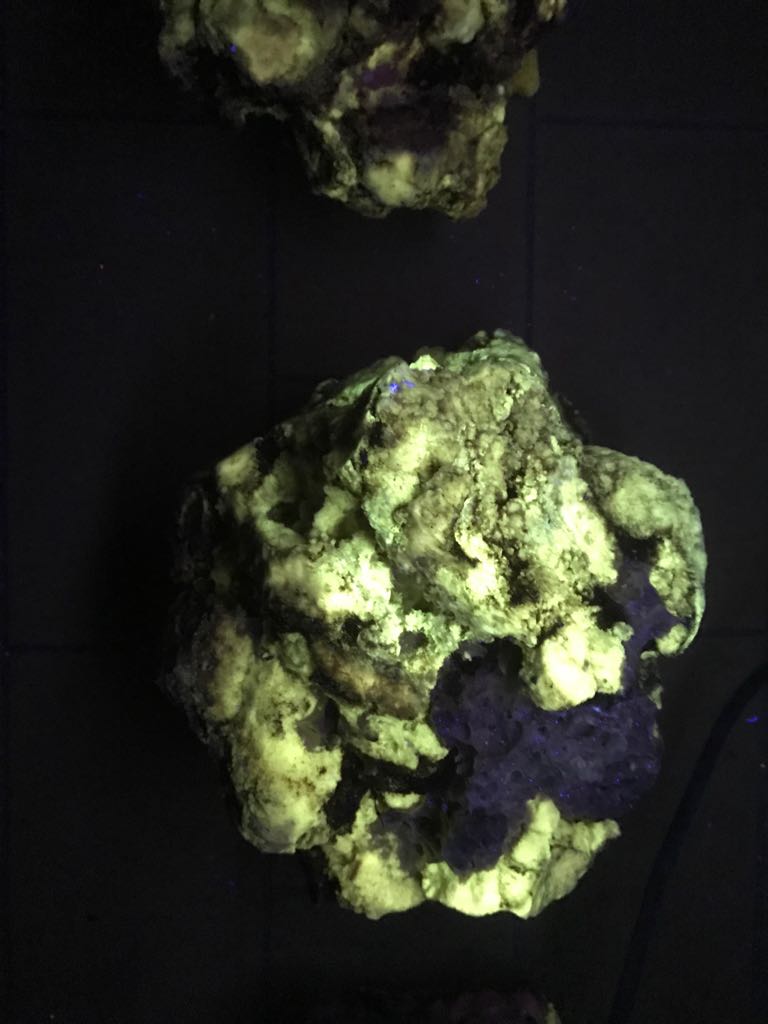

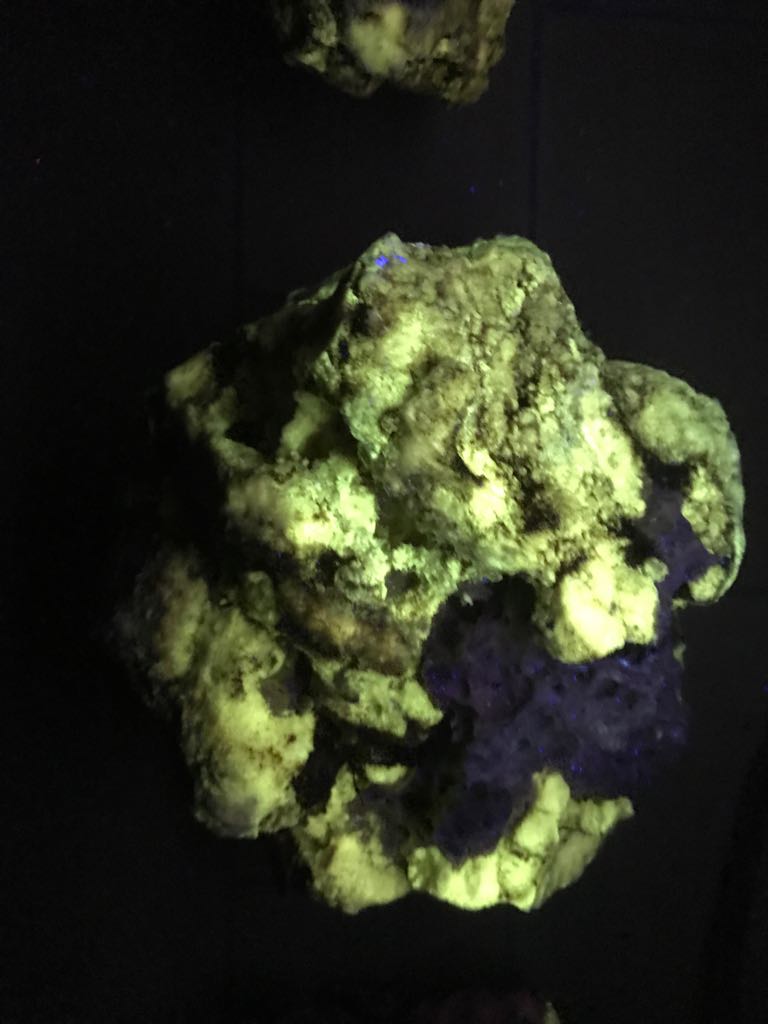

Long Waves Picture (365nm)
OL (365 nm). Col. G. Barmarin; Photo: G. Barmarin
Galerie de photos:
...
To the gallery (35 images in the gallery)
Phosphorescence (in the common meaning of the term) seen by naked eye:
UV Type |
Color |
Intensity |
Observation Frequency |
Long Wave (365nm): | White | Very weak | |
Mid Waves (320 nm): | White | Very weak | | Short Waves (254 nm): | White | Very weak | |
Triboluminescence: Yes
Thermoluminescence: Yes
Main Activator(s) and spectrum:
Most Common Activator: (UO2)2+ (Uranyl ion) as impurities
Other activators: Organic impurities , Fe3+ ,
Peaks in the spectrum (nm):
Fe3+ : 680 nm (Gorobets)
Oil inclusions : 437, 489, 512, 546, 601nm

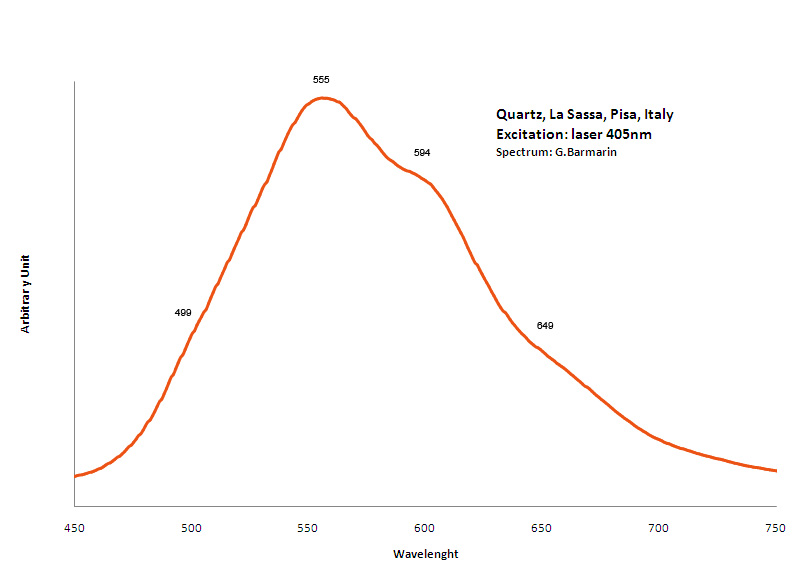

Quartz from La Sassa, Italy: 500, 520, 555, 595, 666nm

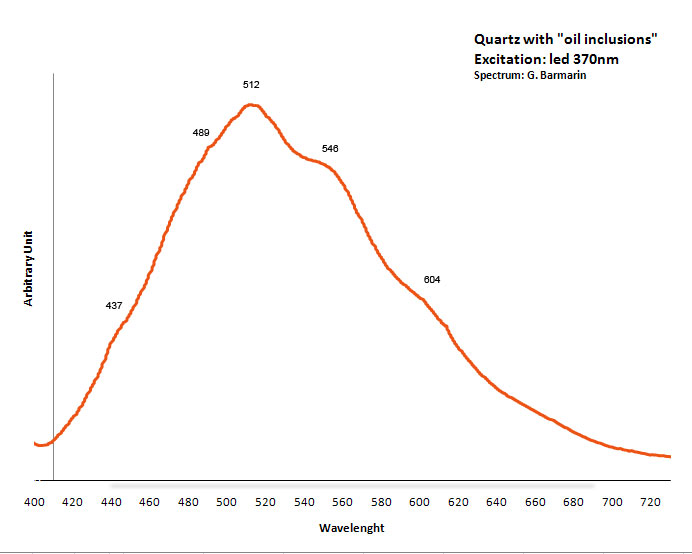

Quartz with "Oil Inclusions".
Excitation: led 370nm. Col. G. Barmarin; Spectre: G. Barmarin
...
To the spectrum gallery (1 spectra in the gallery)
Comments on activators and spectra:
Cathodoluminescence: blue or yellow.
Best Locality for luminescence(*):
- La Sassa, Montecatini Val di Cecina, Pisa Province, Tuscany, Italy (yellowish LW, bright yellow SW);
- Asbach, former DDR (SW Orange, LW Red);
- Hanley Road, Hudson, Wisconsin, USA (fl. medium yellow-orange SW+LW);
- Wadh, Khuzdar District, Balochistan, Pakistan (petroleum/oil inclusion strongly fluorescent with bubble)
(*)Data are not exhaustive and are limited to the most important localities for fluorescence
Bibliographical Reference for luminescence:
- The Henkel Glossary of Fluorescent Minerals, Dr. Gerhard Henkel, Published by the FMS, 1989 ,
- Fluorescence: Gems and Minerals Under Ultraviolet Light, Manuel Robbins, 1994, Geoscience Press, ISBN 0-945005-13-X ,
- The World of Fluorescent Minerals, Stuart Schneider, Schiffer Publishing, 2006, ISBN 0-7643-2544-2 ,
- Luminescent Spectra of Minerals, Boris S. Gorobets and Alexandre A. Rogojine, Moscow, 2002 ,
- Mt St Hilaire Website: http://www.saint-hilaire.ca ,
Luminescence Reference on internet:
- UV-Waves September/October 1996, UV Minerals in former East Germany by H.J.Weller and J. Slacik reprinted from Fundgrube, XXVI, 1990,#3
- UV-Waves (Journal Of The Fluorescent Mineral Society), 2012, Volume 32: A preliminary report: The glowing quartz from La Sassa, Tuscany, Italy, Antonello Dallegno and Guido Mazzoleni.
- MONT-SAINT-HILAIRE, History, Geology, Mineralogy, Laszlo HORVATH, The Canadian Mineralogist, Special Publication 14, 2019
