CLINOHEDRITE
Chemical Formula: CaZnSiO4 H2O
Status: IMA-GP
Crystal System: Monoclinic
Mineral for Display: Yes
Luminescence:
UV Type |
Main color |
Intensity |
Observation Frequency |
|
| | | |
Long Waves (365nm): | Orange | Weak | | Short Waves (254 nm): | Orange | Strong | | | | | |
Daylight Picture

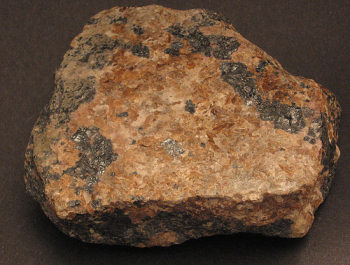

CLINOHEDRITE with Franklinite and minor Willemite,
Franklin, New Jersey zinc mine, USA;
Photo and Copyright: James Van Fleet
Short Waves Pictures (254nm)

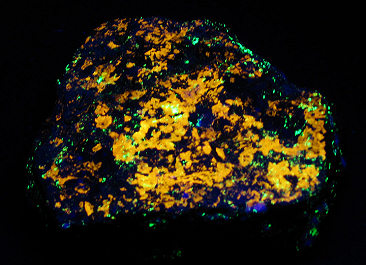

CLINOHEDRITE (UVSW, fluo yellow-orange) with minor Willemite (green), Franklin, New Jersey zinc mine, USA;
Photo and Copyright: James Van Fleet
Phosphorescence (in the common meaning of the term) seen by naked eye:
No Data
Comments:
Pectolite and wollastonite from Franklin, New Jersey, USA, have the same luminescent color but the association with hardystonite is typical of clinohedrite.
Clinohedrite occurs sometime as an alteration of purple fluorescent hardystonite (see http://www.mindat.org/photo-263085.html)
Main Activator(s) and spectrum:
Most Common Activator: Mn2+

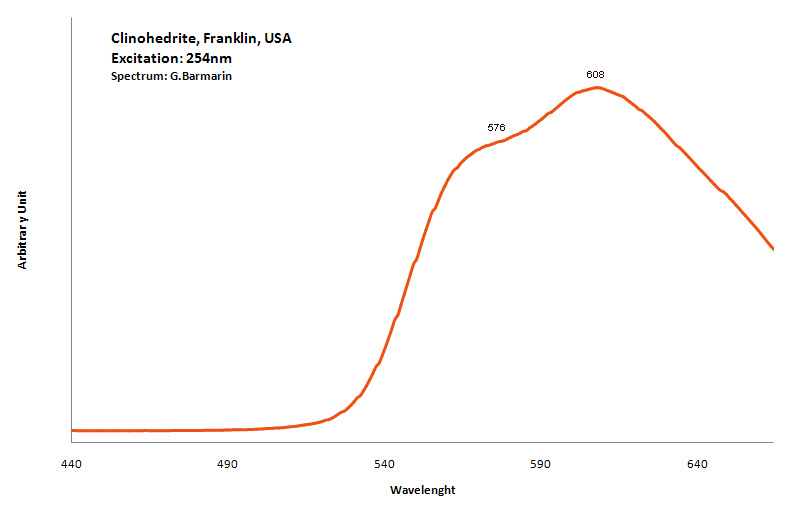

Peaks in the spectrum (nm):
Mn2+ : very broad band peaking at 576nm (70nm half-width)
Mn2+ : very broad band peaking at 608nm (200nm half-width)
Col. G. Barmarin; Spectre: G. Barmarin
Comments on activators and spectra:
Activator is Mn2+ substituting to Ca2+;
Best Locality for luminescence(*):
- Parker Shaft, Franklin, Franklin Mining District, Sussex Co., New Jersey, USA;
(*)Data are not exhaustive and are limited to the most important localities for fluorescence
Bibliographical Reference for luminescence:
- The Henkel Glossary of Fluorescent Minerals, Dr. Gerhard Henkel, Published by the FMS, 1989 ,
- Fluorescence: Gems and Minerals Under Ultraviolet Light, Manuel Robbins, 1994, Geoscience Press, ISBN 0-945005-13-X ,
- The World of Fluorescent Minerals, Stuart Schneider, Schiffer Publishing, 2006, ISBN 0-7643-2544-2 ,
Luminescence Reference on internet:
Images:
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-143518.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-343672.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-179197.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-412310.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-130062.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-159105.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-263085.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-390085.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-446839.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-464301.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-510125.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-613239.html
- Franklin Mine, New Jersey, USA (same item LW): http://www.mindat.org/photo-613240.html
- Franklin Mine, New Jersey, USA: http://www.mindat.org/photo-688273.html
- Franklin Mine, New Jersey, USA (same item in LW): http://www.mindat.org/photo-688274.html
Mineralogical Reference on internet:
http://www.mindat.org/show.php?name=Clinohedrite
http://webmineral.com/data/Clinohedrite.shtml
