ESPERITE

Chemical Formula: PbCa₃Zn₄(SiO₄)₄

Familly: Silicates

Status: IMA-A

Crystal System: Monoclinic

Mineral for Display: Yes

Associated names (luminescent varieties, discredited names, synonymes etc.): calcium larsenite,

Luminescence:

UV Type	Main color	Intensity	Observation Frequency

Long Waves (365nm):	Yellowish White	Weak
Short Waves (254 nm):	Yellow	Very Strong	Always

Daylight Picture

ESPERITE,
Photo and Copyright: James Hamblen
Site of the author
Used with permission of the author

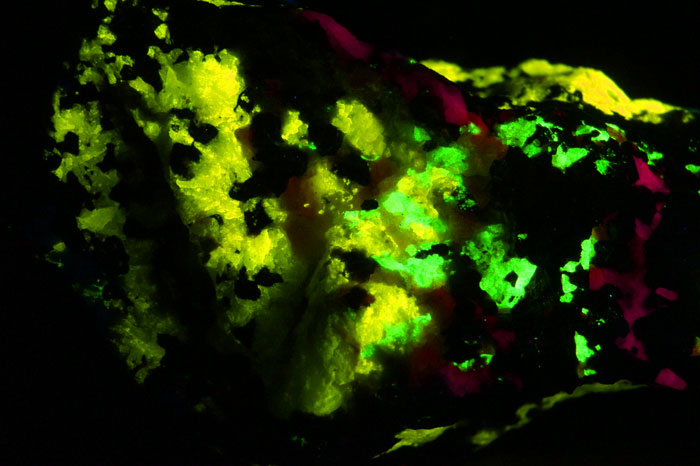

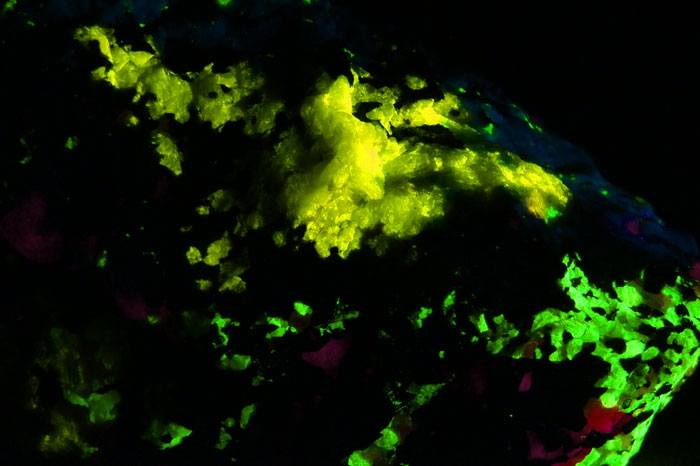

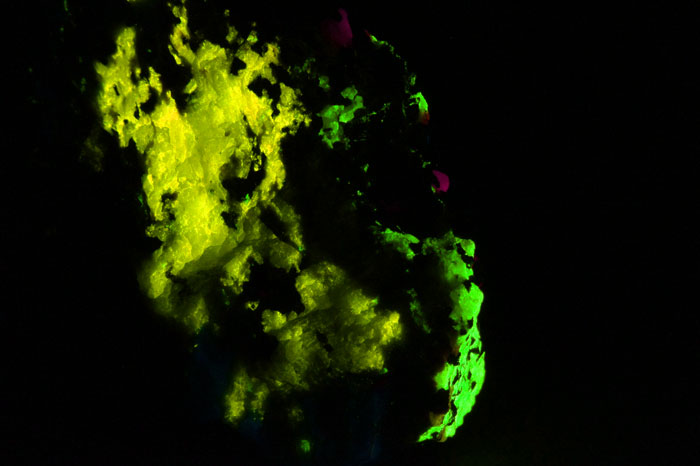

Short Waves Pictures (254nm)

ESPERITE under UVSW,
Photo and Copyright: James Hamblen
Site of the author
Used with permission of the author

Galerie de photos:

...

To the gallery (3 images in the gallery)

Phosphorescence (in the common meaning of the term) seen by naked eye:

No Data

Thermoluminescence: Yes

Comments:

synonyme: calcium larsenite. Associated with willemite (green), hardystonite (dark-blue), calcite (red) and clinohédrite (orange), esperite from franklin give the most exciting combinaison of luminescent colors in one sample.

Main Activator(s) and spectrum:

Most Common Activator: Mn²⁺

Other activators: Ce³⁺ , Sm³⁺ , Dy³⁺ ,

Peaks in the spectrum (nm):

Ce³⁺: 400nm
Mn²⁺ replacing Zn: narrow band peaking at 540-545nm
Sm³⁺ replacing Ca²⁺: small peaks at 600, 645nm
Dy³⁺ replacing Ca²⁺: 482, 575nm
Reabsorption at 580nm by Nd³⁺ and at 660nm by UO²⁺

Spectrum: Michael Gaft, Petah Tikva, Israel. Plot: Institute of Mineralogy, University of Vienna, Austria, with permission of the authors.

...

To the spectrum gallery (3 spectra in the gallery)

Comments on activators and spectra:

Activator: Mn²⁺ (6 coordinated) in Zn and Ca position accompanied by Ce3+,Dy3+ and Sm3+ lines (Gaft).
Decay time: 9 ms

Best Locality for luminescence(*):

Franklin, New Jersey, USA;
El Dragón mine, Antonio Quijarro Province, Potosí Department, Bolivia (microcrystals);

(*)Data are not exhaustive and are limited to the most important localities for fluorescence

Bibliographical Reference for luminescence:

The Henkel Glossary of Fluorescent Minerals, Dr. Gerhard Henkel, Published by the FMS, 1989 ,
Fluorescence: Gems and Minerals Under Ultraviolet Light, Manuel Robbins, 1994, Geoscience Press, ISBN 0-945005-13-X ,
The World of Fluorescent Minerals, Stuart Schneider, Schiffer Publishing, 2006, ISBN 0-7643-2544-2 ,
Luminescence Spectroscopy of Minerals and Materials, M. Gaft, R. Reisfeld, G. Panczer, Springer Editor, ISBN: 10 3-540-21918-8 ,
Luminescent Spectra of Minerals, Boris S. Gorobets and Alexandre A. Rogojine, Moscow, 2002 ,
Ultraviolet Light and Fluorescent Minerals, Th. Warren, S. Gleason, R. Bostwick, et E. Verbeek, 1995, ISBN 0-9635098-0-2 ,
