Chemical Formula: BaCa2Si3O9
Familly: Silicates
Status: IMA-A
Crystal System: Triclinic
Mineral for Display: No
UV Type | Main color | Intensity | Observation Frequency |
---|---|---|---|
Long Waves (365nm): | Pink | Mid waves (320 nm): | Orange | Strong | Short Waves (254 nm): | Orange | Medium |
Other colors MW: | Orangy yellow , Dark Orange /Tawn , Salmon pink , | ||
Other colors SW: | Dark Orange /Tawn , Orange Red , Pink , Salmon pink , |

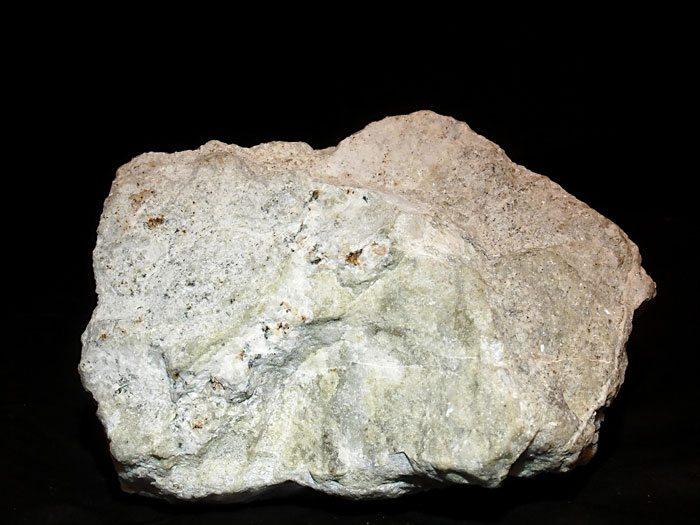

Daylight Picture
WALSTROMITE & CELSIAN,
From the Esquire No. 8 claim, Big Creek, CA USA
Photo and Copyright: Cran Cowan
Used with permission of the author;

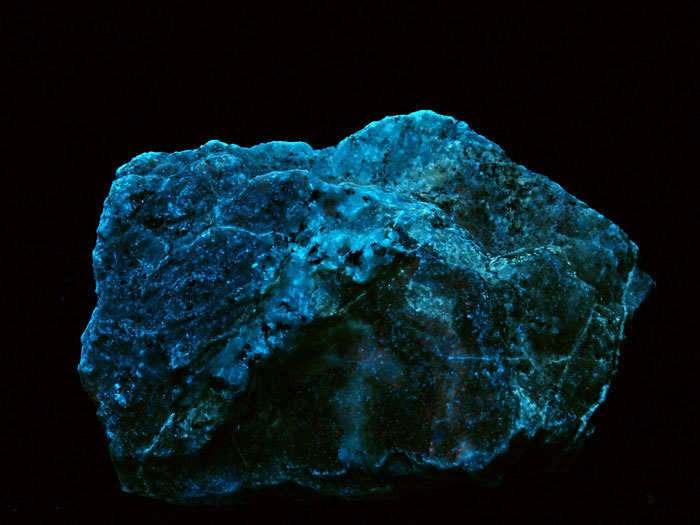

Long Waves Picture (365nm)
WALSTROMITE (not fluo) & CELSIAN (blue), UVLW
From the Esquire No. 8 claim, Big Creek, CA USA
Photo and Copyright: Cran Cowan
Used with permission of the author;

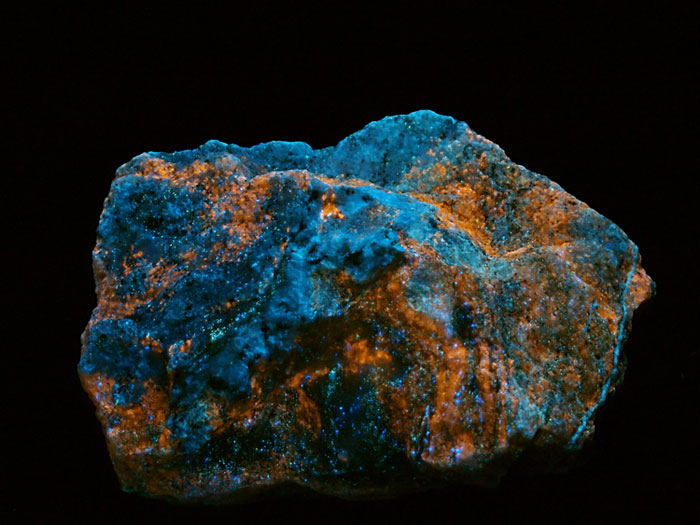

Mid Waves Pictures (330nm)
WALSTROMITE (orange) & CELSIAN (blue), UVMW
From the Esquire No. 8 claim, Big Creek, CA USA
Photo and Copyright: Cran Cowan
Used with permission of the author;
Short Waves Pictures (254nm)
WALSTROMITE (orange) & CELSIAN (blue), UVSW
From the Esquire No. 8 claim, Big Creek, CA USA
Photo and Copyright: Cran Cowan
Used with permission of the author;
Galerie de photos:
...To the gallery (4 images in the gallery)
UV Type | Color | Intensity | Observation Frequency |
---|---|---|---|
Mid Waves (320 nm): | Orange | Strong | Short Waves (254 nm): | Orange | Strong |
Barium analogue of MARGAROSANITE
Most Common Activator: Mn2+
Other activators: Eu2+ , Nd3+ , Tm3+ ,
Peaks in the spectrum (nm):
Time-resolved luminescence spectra are characterized by Tm3+, Eu2+ and Mn2+ centers (Gaft et al. 2013). Excitation by CW laser with 532 and 785 nm revealed several luminescence bands and lines supposedly connected to Mn2+ and Nd3+
(*)Data are not exhaustive and are limited to the most important localities for fluorescence
